The Container ESS features a modular design with flexible capacity (1Mwh-5Mwh)and high efficiency (98.5% conversion rate). It uses A+ grade lithium iron phosphate batteries and multi-layer safety mechanisms, including liquid cooling and fire suppression systems, ensuring reliable performance and safety in demanding applications.
SMILE5 Series system is the bestseller of AlphaESS. It is available for DC-coupling, AC-coupling and hybrid-coupling connection and working with multiple battery options including 2.9kWh, 5.7kWh, 10.1kWh and 13.3kWh battery module. With VPP value stacked, it would be the best choice for householders.
/
Mobile Energy Storage System
Back to products
Outdoor C&l Cabinet(External Inverter)

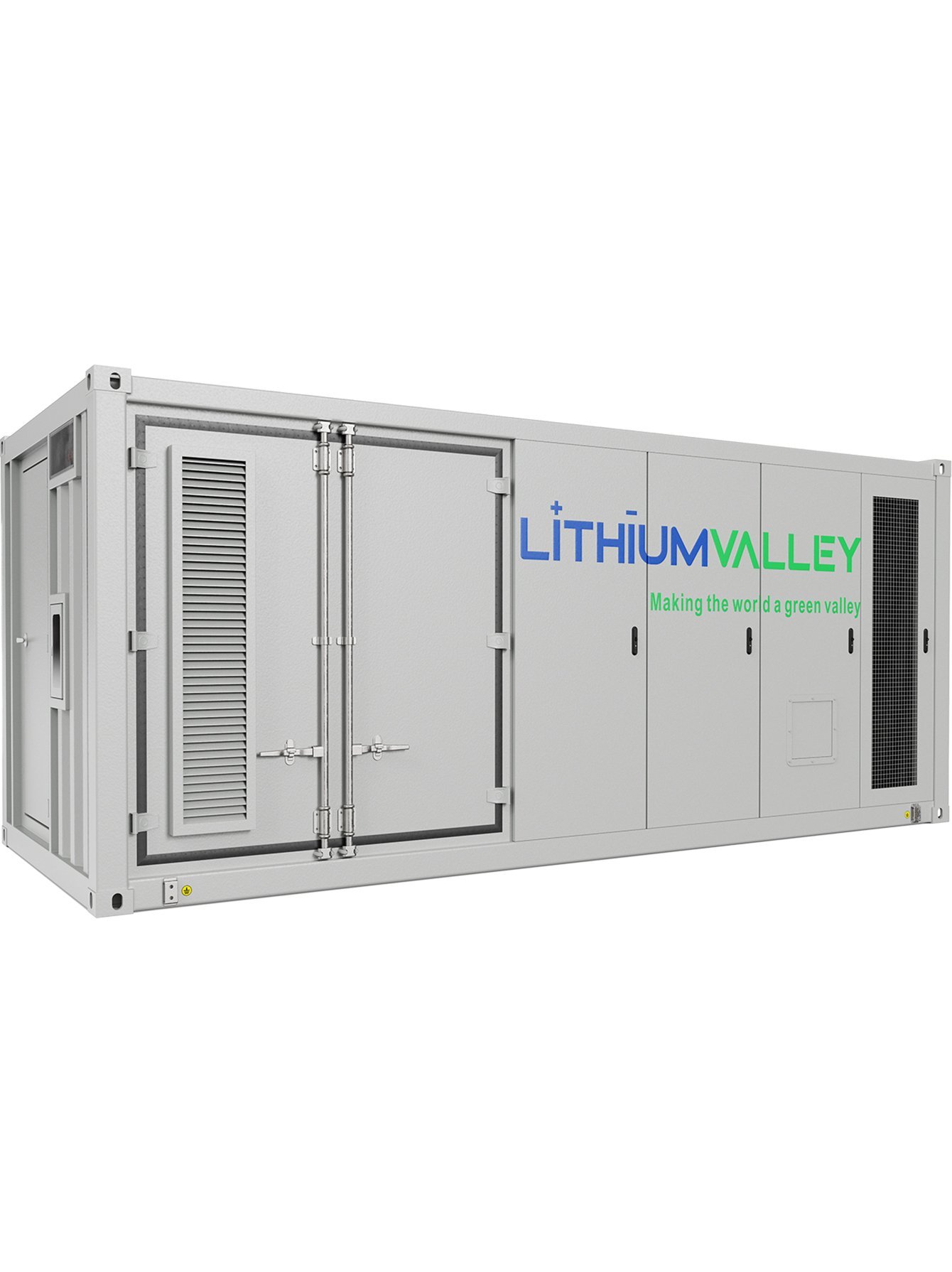

The Container ESS features a modular design with flexible capacity (1Mwh-5Mwh)and high efficiency (98.5% conversion rate). It uses A+ grade lithium iron phosphate batteries and multi-layer safety mechanisms, including liquid cooling and fire suppression systems, ensuring reliable performance and safety in demanding applications.
Model
MV500-1000L-05G
Nominal energy
1044kwh
Rated Power
500kw
Nominal Voltage
832V
Operating Voltage
702V – 949V
Dimension(W*D*H)
6058×2438×2896 mm
IP Rating
IP54
Certifcation
Cycle life
IEC/EN 62619, IEC/EN 61000, UN3536, UN38.3, MSDS
≥8000(@25℃,0.5C)
FEATURES
Modular & Flexible Capacity
Adopts a modular design with capacity flexibly ranging from 1MWh to 5MWh, suitable for energy demands of different scales
High – Efficiency Energy Conversion
Reaches a 98.5% energy conversion rate to greatly improve energy utilization efficiency
Multi – layer Safety Assurance
Equipped with A+ grade lithium iron phosphate batteries, integrated with liquid cooling and fire suppression systems to ensure reliable operation
Long Lifespan & High Protection
Cycle life ≥8000 times (@25℃, 0.5C), with IP54 protection rating to adapt to harsh application scenarios
Compatible List of inverters Brands
