The System offers flexible and modular capacity options from 20kWh to 100kWh, with silent operation under 60dB. It ensures long life and safety through A+ grade lithium iron phosphate batteries and multi-level BMS protection. The system supports various power inputs (PV, diesel, wind) and requires no complex setup, providing efficient energy storage for diverse applications.
SMILE5 Series system is the bestseller of AlphaESS. It is available for DC-coupling, AC-coupling and hybrid-coupling connection and working with multiple battery options including 2.9kWh, 5.7kWh, 10.1kWh and 13.3kWh battery module. With VPP value stacked, it would be the best choice for householders.
/

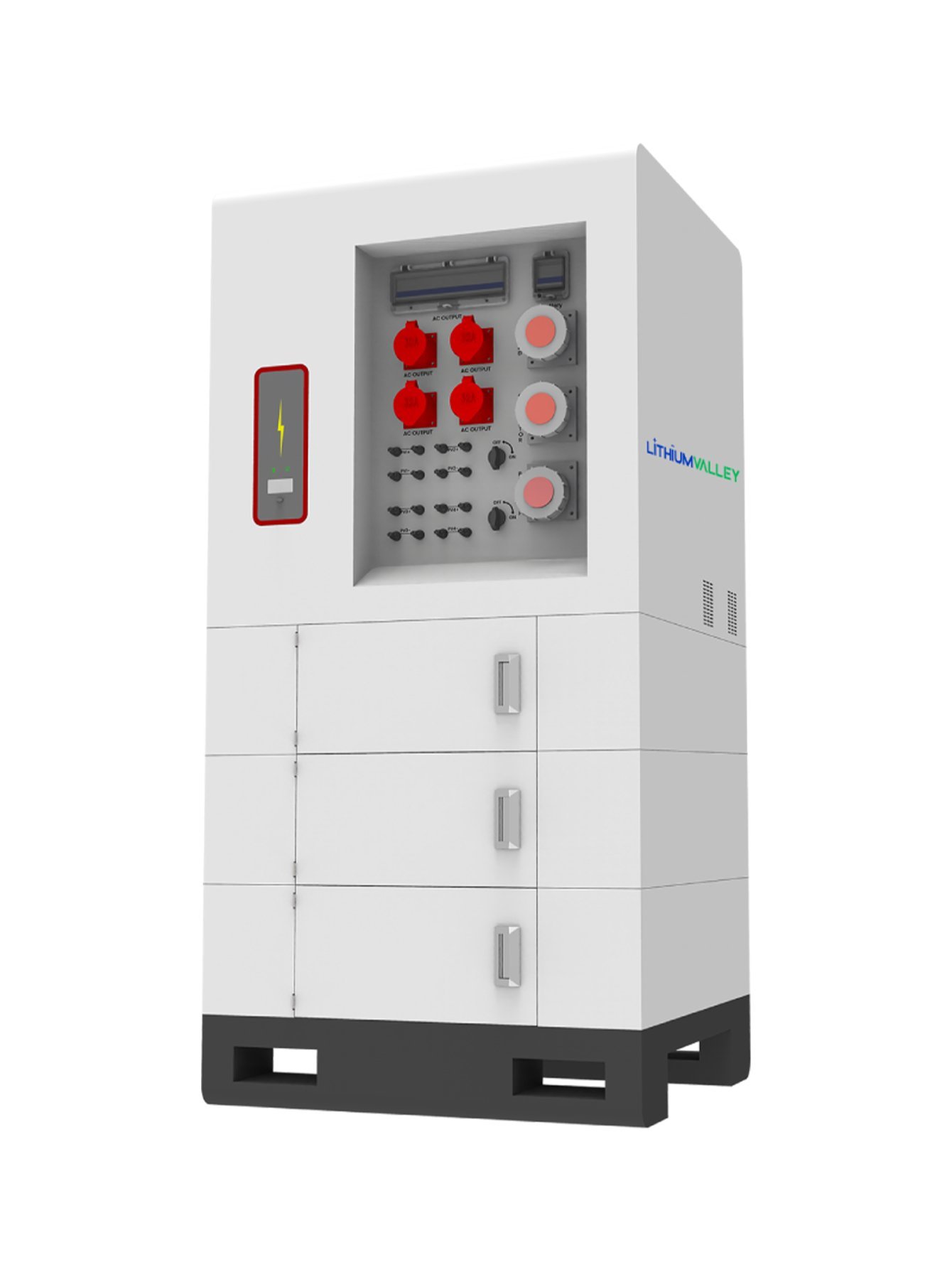

MV500-1000L-05G (liquid cooling)
The System offers flexible and modular capacity options from 20kWh to 100kWh, with silent operation under 60dB. It ensures long life and safety through A+ grade lithium iron phosphate batteries and multi-level BMS protection. The system supports various power inputs (PV, diesel, wind) and requires no complex setup, providing efficient energy storage for diverse applications.
Model
LV-MAST-T60K-A
Battery Configuration Capacity
60/80/100kWh
Mppt Input Voltage
200~850VDC
Rated Output Power
50kW
Dimensions (WxDxH)
900*850*2400mm(4 layers)
Weight
1080KG(4 layers)
Cycle life
6000@80%DOD, 25℃/0.5℃
IP Rating
IP54
FEATURES
Flexible Modular Capacity
Provides modular capacity options from 20kWh to 100kWh to match diverse scenario needs
Low – Noise Silent Operation
Operates at less than 60dB, suitable for noise – sensitive environments
High Safety & Long Lifespan
Uses A+ grade lithium iron phosphate batteries with multi – level BMS protection for safety and long cycle life
Multi – energy Compatible & Easy Deployment
Supports various power inputs (PV, diesel, wind) and requires no complex setup for quick deployment
Compatible List of inverters Brands
