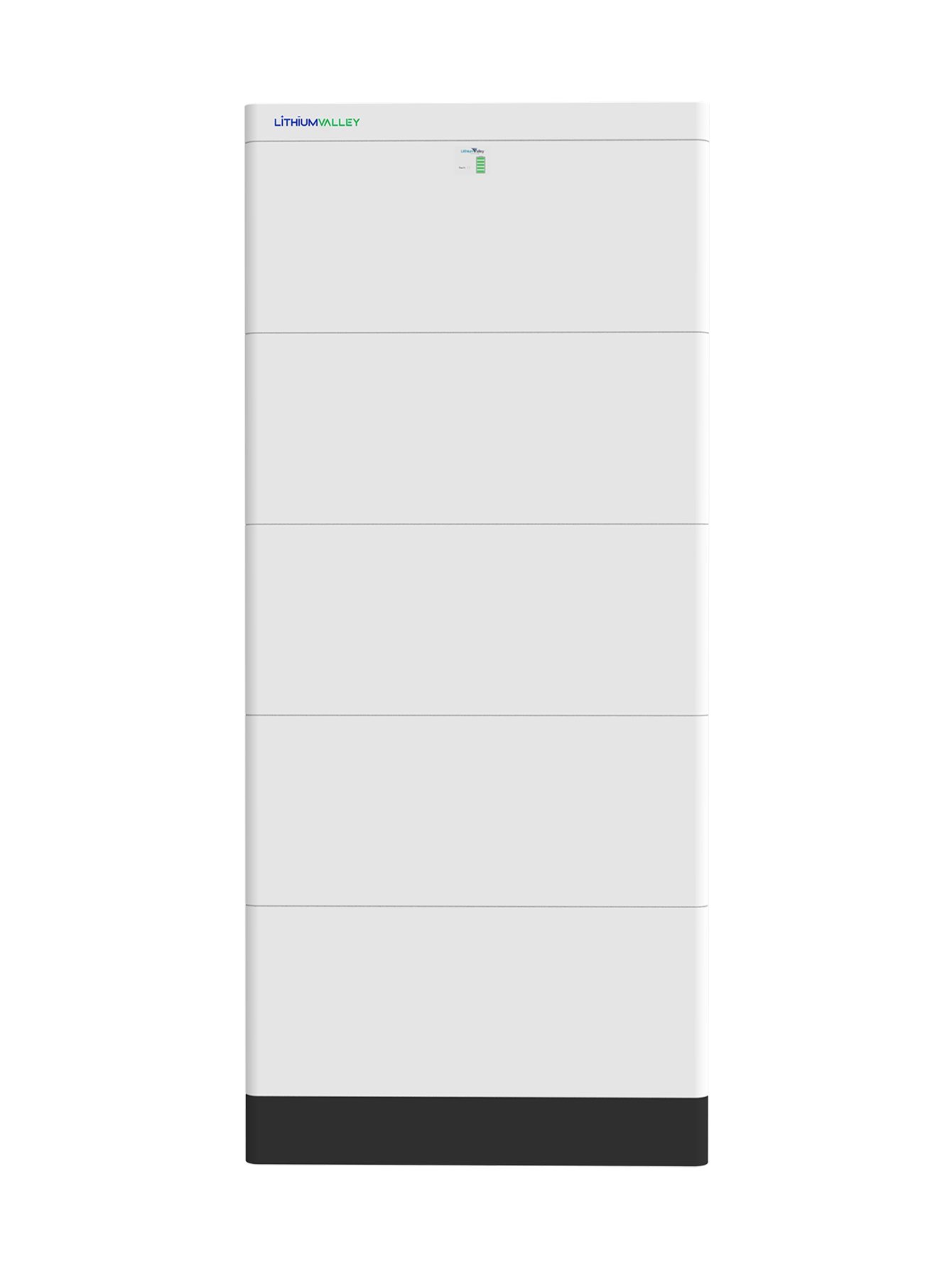

The LV-BST-H5.12Aa is a high-performance stacked energy storage solution designed for modern homes. This flexible system allows for customized energy storage to meet varying household energy needs. With a nominal voltage of 51.2V and a capacity range from 5.12kWh to 30.72kWh, the system ensures reliable backup power and energy security for your home.
Equipped with an advanced Battery Management System (BMS), this battery continuously optimizes performance, ensuring maximum safety and longevity. It offers overcharge, over-discharge, and temperature protection, making it ideal for safe operation in all environments.
With a modular design, the LV-BST-H5.12Aa is easy to expand as your needs grow. Whether for backup power or energy independence, this battery is a reliable and efficient solution for residential energy storage.
SMILE5 Series system is the bestseller of AlphaESS. It is available for DC-coupling, AC-coupling and hybrid-coupling connection and working with multiple battery options including 2.9kWh, 5.7kWh, 10.1kWh and 13.3kWh battery module. With VPP value stacked, it would be the best choice for householders.
/
W15-5A (Residential LFP Battery Series)
Back to products
The LV-BST-H5.12Aa is a high-performance stacked energy storage solution designed for modern homes. This flexible system allows for customized energy storage to meet varying household energy needs. With a nominal voltage of 51.2V and a capacity range from 5.12kWh to 30.72kWh, the system ensures reliable backup power and energy security for your home.
Equipped with an advanced Battery Management System (BMS), this battery continuously optimizes performance, ensuring maximum safety and longevity. It offers overcharge, over-discharge, and temperature protection, making it ideal for safe operation in all environments.
With a modular design, the LV-BST-H5.12Aa is easy to expand as your needs grow. Whether for backup power or energy independence, this battery is a reliable and efficient solution for residential energy storage.
Model
LV-BST-H5.12Aa
Capacity
15.36~30.72KWh
Max.Charge/Discharge Current
100A
Depth of Discharge (DoD)
95%
Dimensions (WxDxH)
High Voltage Box:610*225*250
Battery Box:610*225*250
Operating Temperature
0℃～55℃
IP Rating
IP 65
Certifcation
CB, IEC62619, UL1973, UKCA, CE-EMC,CE-GPSD, EN62619 ; UN38.3, MSDS
FEATURES
Multi-Scenario Use
Perfect for backup power, energy independence, and renewable energy applications
Easy Installation
Simplified installation process for both wall-mounted and floor-standing configurations
Flexible & Expandable
Modular design allows for easy scalability from 5.12kWh to 30.72kWh
Longer Life & Safer
Built with LiFePO4 technology, offering extended life cycles and enhanced safety
Certified Quality
Meets all major industry standards, including CB, CE, IEC, and UL certifications
Low Maintenance
Minimal maintenance requirements with real-time monitoring via the BMS
Why Choose LV-BST-H5.12Aa?
Energy Security
Ensure your home has continuous power even during outages
Flexibility
Start with what you need and easily expand your capacity as your energy requirements grow
Safety & Reliability
Built-in protections and certified quality ensure peace of mind for long-term use
Sustainability
Powered by eco-friendly LiFePO4 technology, reducing environmental impact while saving on energy costs
Compatible List of inverters Brands
